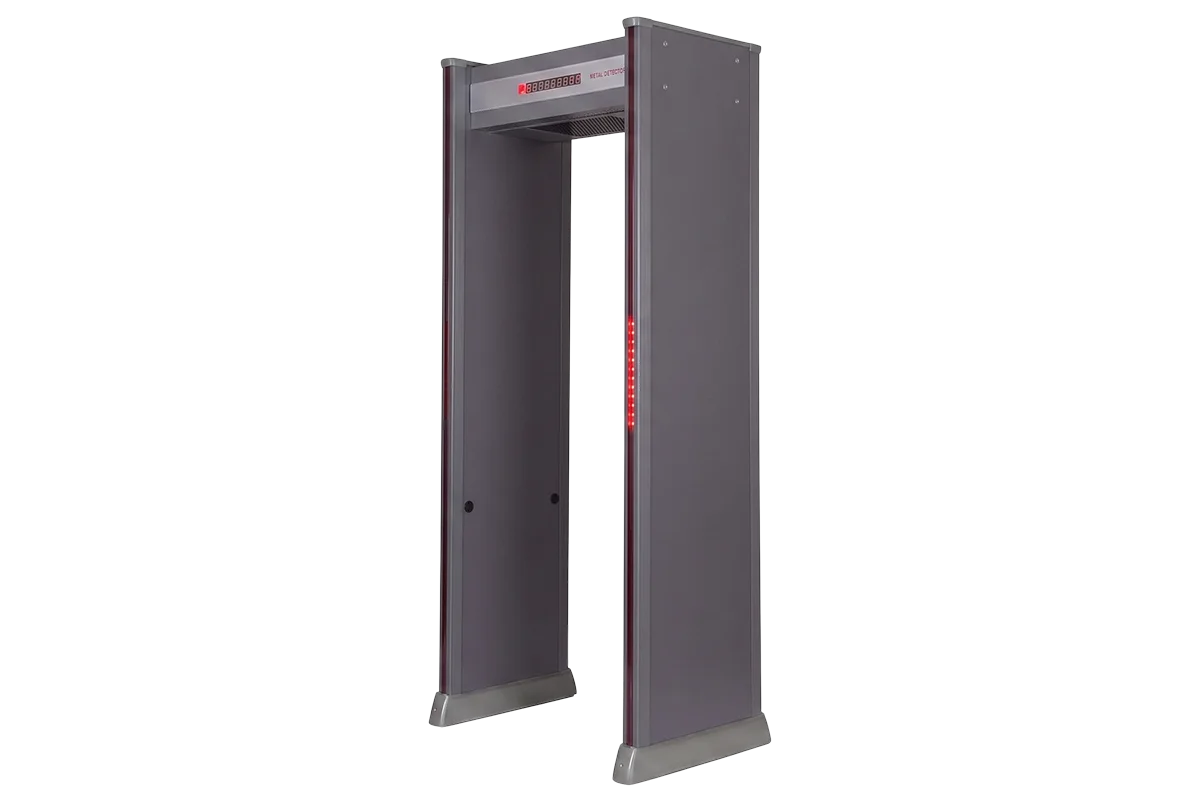

SG 300 A

Walk-Through Metal Detector – Zone Detection with LED Alarm Bars

Description

The SG 300A Walk-through Metal Detector is a high-precision security device. With 11-33 independent detection zones and DSP technology, it can detect even the smallest metal threats. It is easily controlled through a user-friendly LCD screen and remote control. With an IP65 waterproof rating and a wide operating temperature range of -20℃ to +55℃, it is designed to withstand harsh environmental conditions. Additionally, the sensitivity can be adjusted between 0-300, and it features sound and light alarm systems, as well as the ability to calculate traffic flow and alarm statuses. Certified with ISO9001, ISO14001, and CE, this detector offers a robust security solution.

Sensitivity
Adjustable
Led
Display
High
Precision
Password
Protection
Led Light
Indicator
Waterproof
Volume
Adjustable
Modular
Design
Pc
Networking
Width
Customizable
Ups
Battery
Access Control
Connection
  • SG 300A designed for maximum efficiency
  • Equipped with high-sensitivity sensors
  • Secure and reliable access control solution
  • Weatherproof and durable construction

Specification

Overall Exterior Size2204 x 870 x 419 mm
Operating VoltageAC100V-240V 50/60Hz
Power12W
Operating Temperatures-20℃ to +55℃
Weight70 kg

Configuration

Function Configuration

Detection Zones18 Zones33 Zones
Pass Count0-999990-99999
Alarm Count0-999990-99999
Metal Detection Accuracy RangeOne-dollarOne-dollar
User InterfaceDual sets of bright red and green digital tube display + integrated four-button panel operation modeDual sets of bright red and green digital tube display + integrated four-button panel operation mode
Metal Position Indicator5-digit password protection5-digit password protection
Operating Frequency0-990-99
Security Level0-990-99

Download

Brochures
SG-300-A-Walk-Through-Metal-Detector.pdf
20.26 MB
