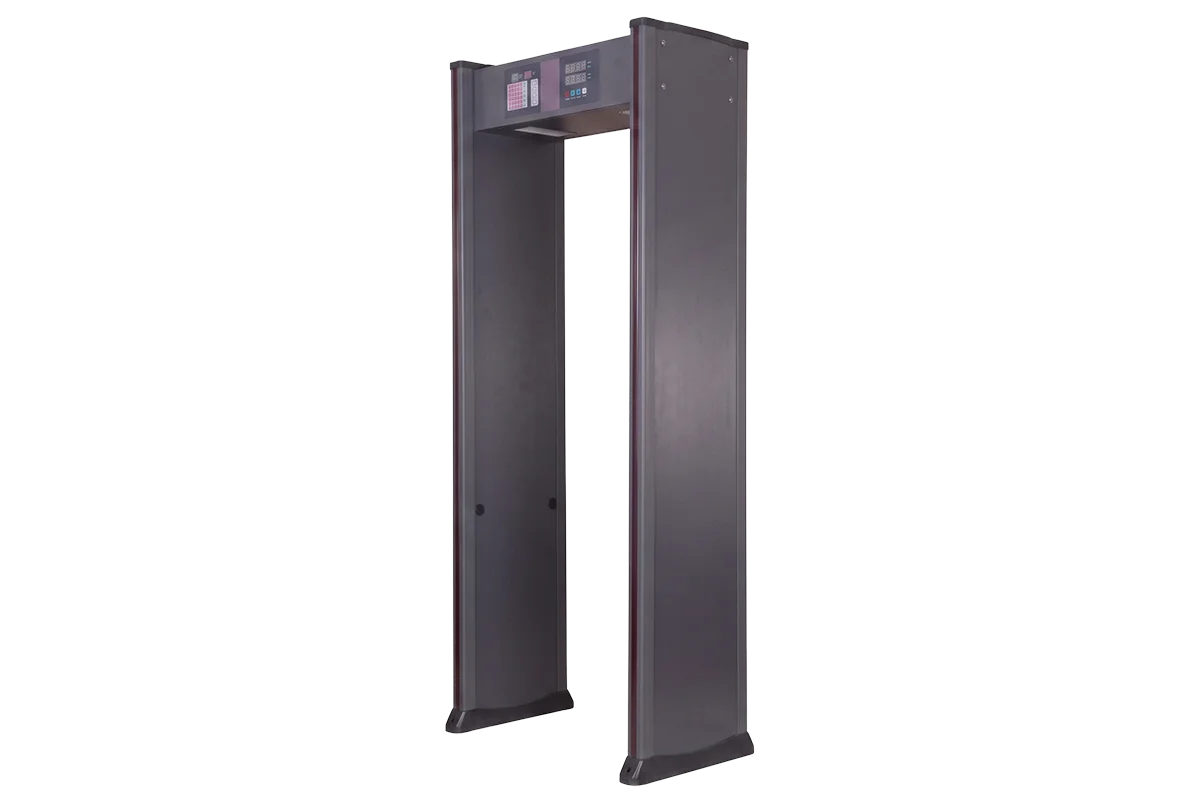

The 270CA Cross Beam Digital Control Box is a high-performance, high-sensitivity walk-through metal detector designed for reliable security screening. Featuring a modular design with dual sets of high-brightness red and green LED displays, it offers precise, multi-zone metal detection with adjustable sensitivity and volume controls. The detector utilizes weak magnetic field technology, ensuring it is completely harmless to individuals with cardiac pacemakers, pregnant women, and magnetic storage devices. To minimize false alarms, the system allows operators to pre-set parameters to ignore common personal items like keys, jewelry, and belt buckles. Furthermore, it includes password protection and comprehensive environmental monitoring capabilities for maximum operational stability.
The system has the function of displaying environmental monitoring data; High performance, high sensitivity, high stability.
Pre-set the weight, volume, size, location of metal items, excluding keys, jewelry, belt buckle and other false alarm.
In line with EMC electromagnetic radiation standards, using weak magnetic field technology, to wear cardiac pacemakers.
Harmless to persons, pregnant women, floppy disks, film, video tapes, etc.
Conform to Electricity EN60950 Safety Standard.
Conform to Radiation EN50081-1 Standard.
Conform to Anti-interference EN50082-1 Standard.
| Feature | Details |

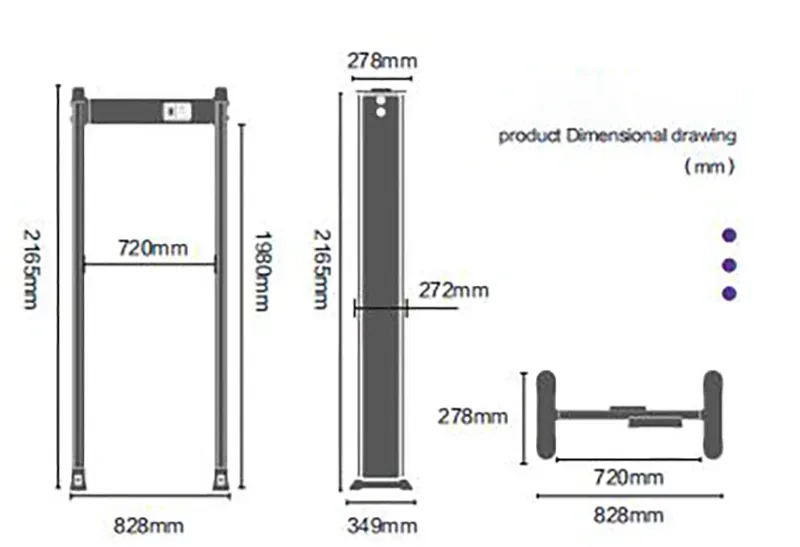

| Overall Exterior Size | 2165 x 828 x 349mm |
| Passageway Interior Size | 2017 x 720 x 349mm |
| Operating Voltage | AC100V~240V 50/60Hz |
| Power | 12W |
| Operating Temperatures | -20°C ~ 65°C |
| Installation | Width 100cm x Length 200cm |
| Environment | (minimum range without metal) |
Package Details:
Packaging: Carton box
Package Size: L2245 x W535 x H170mm
Volume: 0.18m³
Net Weight: 24kg
Gross Weight: 29kg
| Function | 5 ZONES | 11 ZONES |
| Metal Detection Accuracy Range | One-dollar coin | One-dollar coin |
| Can be excluded | Personal Metal Items | Can be excluded |
| Operating Interface | Dual sets of high-brightness red/green LED displays + integrated four-button panel operation mode | Dual sets of high-brightness red/green LED displays + integrated four-button panel operation mode |
| Password Protection | 5-digit password protection | 5-digit password protection |
| Working Frequency | 0-99 | 0-99 |
| Overall Security Level | 0-99 | 0 |
| Each Zone Sensitivity Levels Adjustable | 0-400 | 0-400 |
| Multiple Alarm Tone Adjustment | 0-99 | 0-99 |
| Alarm Volume Adjustment Range | 1-99 | 1-99 |
| Alarm Duration Adjustment | 1-99 | 1-99 |
| Multiple Scenario Selection | 72 Scenarios | 72 Scenarios |
| Infrared Activation Mode | 0 Off Infrared, 1 Front Group On, 2 Rear Group On, 3 Both Groups On | 0 Off Infrared, 1 Front Group On, 2 Rear Group On, 3 Both Groups On |
| Multi-Zone Simultaneous Detection & Alarm | 2 Zones Simultaneous Alarm | 2 Zones Simultaneous Alarm |
| Passage Counting & Clear Function | 0-99999 | 0-99999 |
| Alarm count statistics and reset function | 0-99999 | 0-99999 |
Optional Functions:
Networking Function (RJ45)
Battery management Mode
Updating Programing (USB)
Turnstile Function
Front and rear four-sided pillar alarm indicator
Four Traffic Light
