The SG 100100 D X-Ray Baggage Scanner by Polimek is a comprehensive and advanced security inspection system designed for large-scale screening. It features a spacious 1000 x 1015 mm tunnel and is equipped with two generators to provide a dual-view perspective and dual-energy imaging. This ensures highly accurate threat alerts, material classification, and specific detection capabilities for drugs and explosives. Built for operational resilience, the system includes an uninterruptable power supply (UPS), automatic self-diagnostics, and network readiness, all integrated into an energy-saving design with a secure access key and a user-friendly multilingual interface.
| Specification | Detail |
|---|---|

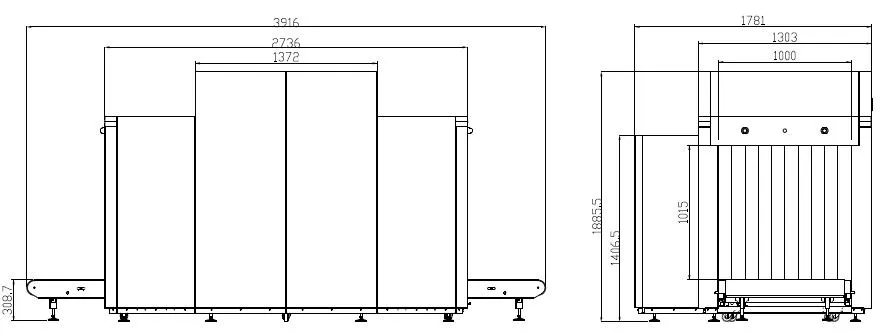

| Product Size (L x W x H) / Tunnel Size | 3916 x 1781 x 1885.5 mm / 1000 x 1015 mm |
| Wire Resolution | Typical AWG36 (top view); Typical AWG38 (side view) |
| Penetration | 36mm (top view); 34mm (side view) |
| Conveyor Speed / Max Load | 0.2m/s / 200kg |
| X-Ray Dosage Each Inspection | 4.8µSv(uGy) (Meets GB 15208.1-2005) |
| Power Consumption | 1.5KW |
| Operation / Storage Temperature | -5 to 50°C / -20°C to 60°C |
| Operation Power | AC220V(±10%-15%) 50±3Hz |
| Weight | 1350 KG |
| Operating System | Windows 7-10 |
