X-Ray Baggage Scanner > Medium & Large Baggage X-Ray Scanner

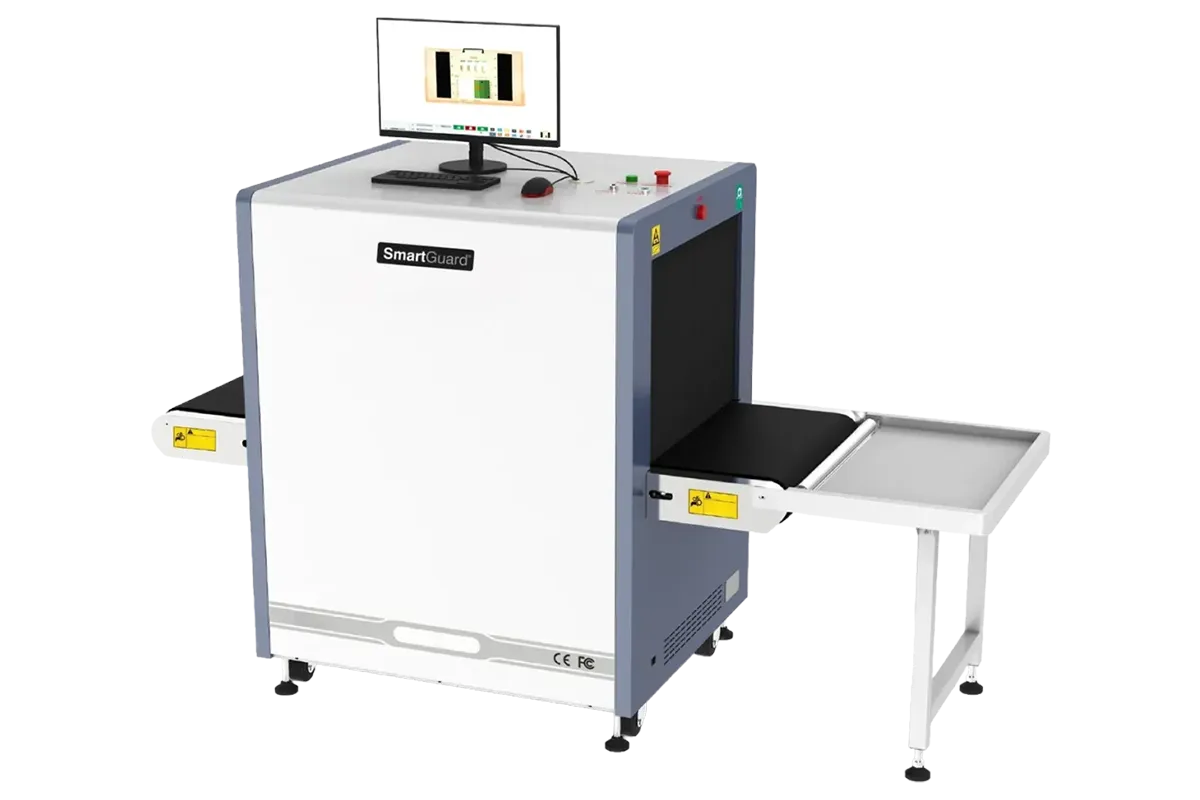

SG 6550 C

X-Ray Luggage Scanner

Description

6550C Linux is an elite-level baggage inspection system featuring advanced dual-energy scanning. It provides superior penetration of up to 40mm in steel and high-resolution imaging with 64x zoom. This Linux-powered system is designed for high-security environments like airports and critical infrastructure where thorough parcel screening is essential.

Sensitivity
Adjustable
Led
Display
High
Precision
Password
Protection
Led Light
Indicator
Waterproof
Volume
Adjustable
Modular
Design
Pc
Networking
Width
Customizable
Ups
Battery
Access Control
Connection
  • Elite 655x505mm dual-energy tunnel
  • Superior steel penetration and wire resolution
  • Automatic identification of dangerous substances
  • 64x dynamic digital zoom for details
  • Dual-monitor HD visual management system
  • Network ready for remote monitoring centers

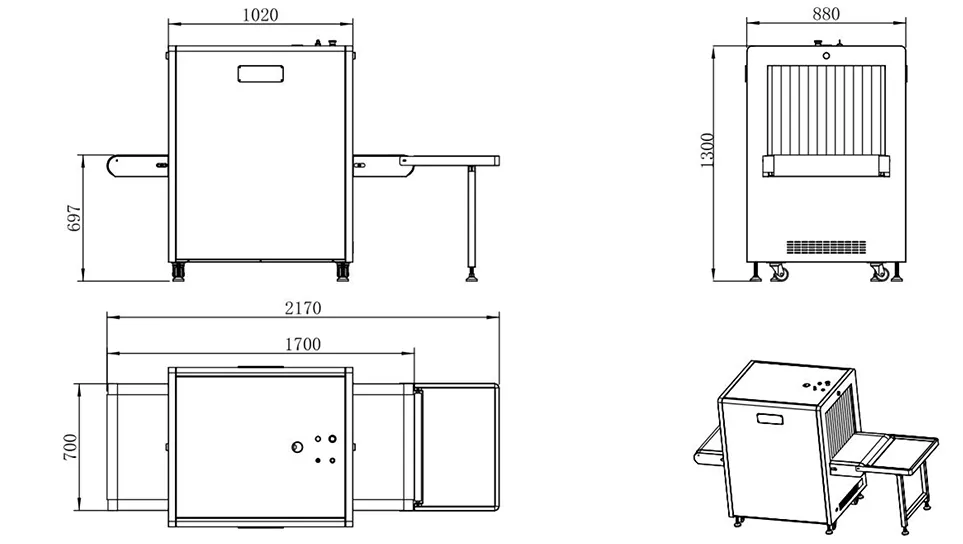

Specification

Tunnel Size655 x 505 mm
Steel penetration38-40 mm
Wire resolution42 AWG
Generator160 kV (Dual energy)

Configuration

Function Configuration

PlatformAdvanced Linux Workflow
ThreatsAutomatic Explosive/Narcotic Warn
Zoom64x Dynamic Selection
MonitorDual 19 inch HD Display

Download

Brochures
SG-6550-C-X-Ray-Baggage-Scanner.pdf
1.30 MB
Download / Preview
