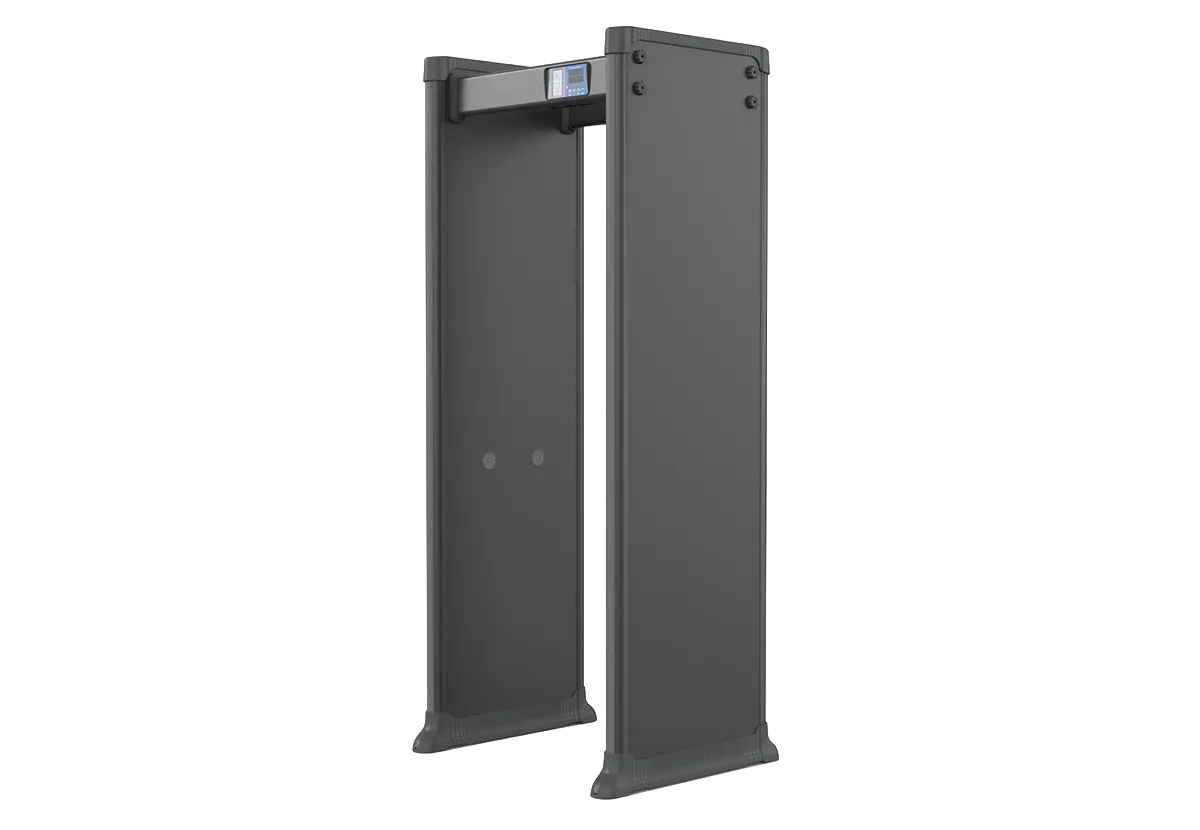

SG 668 WA

Walk-Through Metal Detector – Outdoor Waterproof

Description

The Polimek 668 WA is a high-performance, IP65 waterproof walk-through metal detector designed for highly stable and reliable outdoor and indoor access control. Engineered in Türkiye, this advanced security solution features a cross-beam design and an easy-to-operate LED digital control box, offering comprehensive detection across 33 or 63 customizable zones. It strictly adheres to international EMC electromagnetic radiation and safety standards, utilizing weak magnetic field technology to ensure it is completely harmless to pacemaker wearers, pregnant women, and magnetic media. With capabilities like environmental monitoring data display, highly precise detection (down to a one-dollar coin), and optional networking for managing multiple units from a single PC, the 668 WA delivers superior precision and scalable security management.

Sensitivity
Adjustable
Led
Display
High
Precision
Password
Protection
Led Light
Indicator
Waterproof
Volume
Adjustable
Modular
Design
Pc
Networking
Width
Customizable
Ups
Battery
Access Control
Connection
  • Function of displaying environmental monitoring data
  • High performance, high sensitivity and high stability
  • Optional networking function, multiple devices can be managed through one PC
  • LED digital control box for easy operation
  • IP65 waterproof designed specifically for outdoor use
  • Comply with EMC electromagnetic radiation standards and adopt weak magnetic field technology, making it harmless to pacemaker wearers, pregnant women, floppy disks, film and video tapes
  • Conform to Electricity EN60950 Safety Standard
  • Conform to Radiation EN50081-1 Standard
  • Conform to Anti-interference EN50082-1 Standard

Specification

Overall Exterior Size2204 x 865 x 780mm
Passageway Interior Size2010 x 720 x 780mm
Operating VoltageAC100V~240V 50/60Hz
Power12W
Operating Temperatures-20°C to 65°C
Installation EnvironmentWidth 100cm Length 200cm (minimum range without metal) Sheet-like, horizontal orientation

Configuration

  • Detection Zones: 33 Zones / 63 Zones
  • Pass Count & Alarm Count: 0-99999
  • Metal Detection Accuracy Range: One-dollar coin
  • User Interface: Dual sets of bright red and green digital tube display + integrated four-button panel operation mode
  • Password Protection Function: 5-digit password protection
  • Metal Position Indicator: Intelligent zoning indication
  • Adjustable Settings (0-99): Operating Frequency, Security Level, Alarm Volume, Alarm Tone, and Alarm Time
  • Sensitivity Level: 0-400
  • Scene Setting: 72 preset scenes
  • Infrared Setting: 0-Both groups OFF, 1-Front group ON, 2-Rear group ON, 3-Both groups ON
  • LED Alarm Bars: Interchangeable Front 2 groups
  • Simultaneous Detection: 2 Detection zones simultaneously alarm

Download

Brochures
Polimek_668_WA.pdf
2.42 MB
