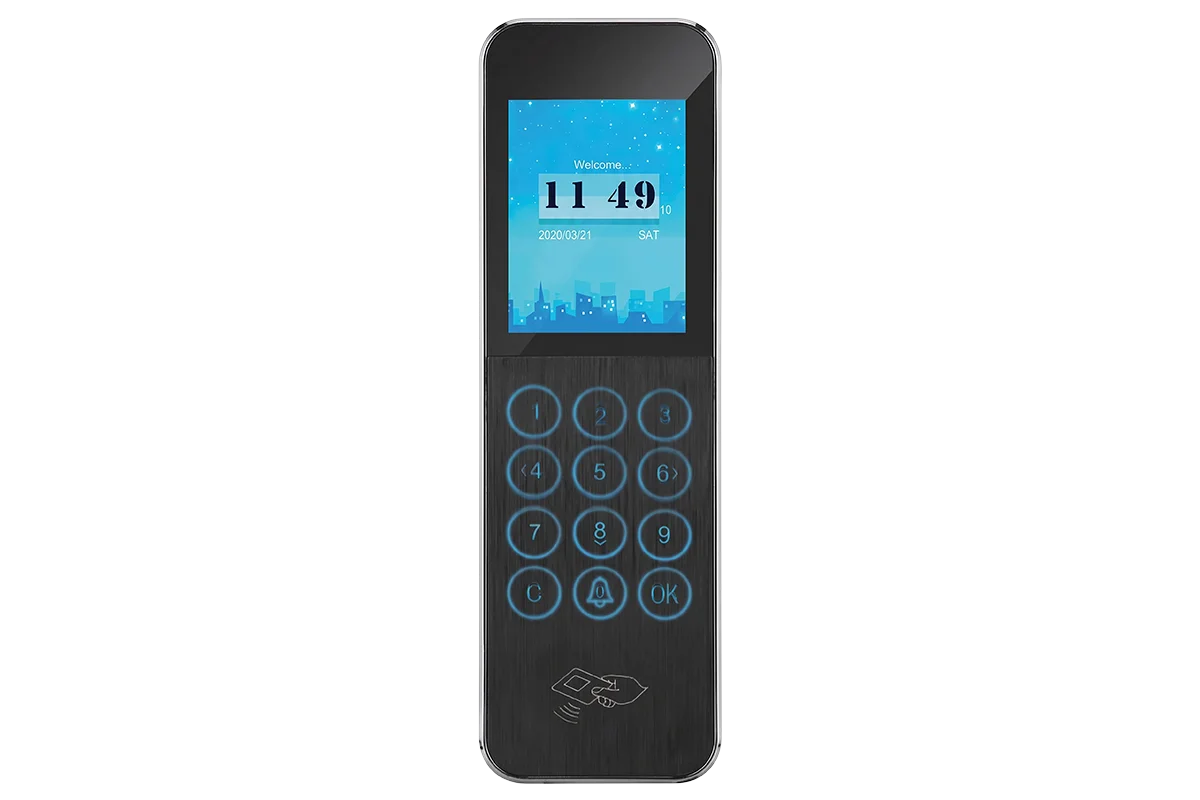

The PL 35 D Card Reader is a stylish and durable access control device that can be safely used both indoors and outdoors, featuring a metallic case and IP65 waterproof protection. Thanks to its slim design measuring 140 x 42 x 18 mm, it can be easily integrated into narrow door frames. Offering verification options via ID card and password, this reader has a capacity of 3,000 cards/PINs and a 100,000 log record memory. Equipped with a touch keypad, a 2.1-inch TFT color display, and various communication interfaces such as TCP/IP, RS485, and USB, it is an ideal security solution for professional access control systems.
Metallic case and touch keypad system.
IP65 waterproof structure.
Slim design: Suitable for use on narrow door frames with dimensions of 140 x 42 x 18mm.
Access and entry control via RFID and Password.
| Feature | Details |
| Operating Mode | Online / Offline |
| Verification Method | ID card, password |
| Card Capacity | 3000 |
| PIN Capacity | 3000 |
| Record Capacity | 100,000 |
| Verification Speed | ≤1.0s |
| Verification Mode | 1:N, 1:1 |
| FRR / FAR | <0.01% / <0.0001% |
| Display | 2.1-inch TFT color screen |
| Input | Touch keyboard, T9 input |
| Language / Voice | Chinese, English, etc. |
| Dimensions | 140 x 42 x 18mm |
| Power Supply | DC 12V |
| Function / Communication | Details |
| TCP/IP & RS485 | YES |
| USB Cable Line | YES |
| USB Flash Drive | EXCEL export and import |
| Time Zone | 8 day time zones, 8 weekly time zones, 5 combinations and supports multi-person verification |
| Tamper Protection | YES |
| Doorbell / Door Sensor | YES / YES |
| Exit Button | YES |
| Lock Signal | Set relay output |
| Wiegand Signal | Wiegand In/Out |
| Alarm Signal | Set signal (anti-tamper / threat door opening / force) |
| Anti-passback | Indoor / Outdoor |
| Lock Control | A/B doors |
| Fire Alarm | YES |
