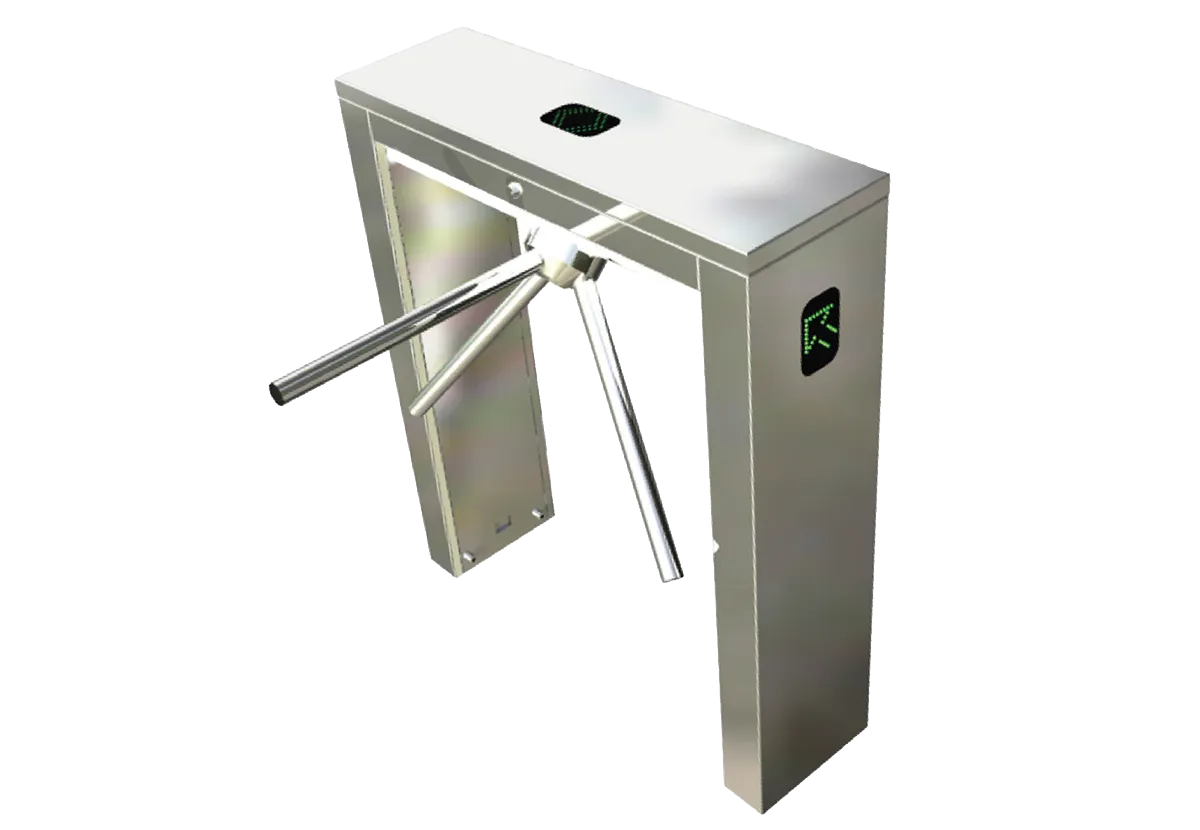

The PL 250 Electromechanic Tripod Turnstile provides a basic and robust access control solution designed to secure various locations worldwide, especially those with intense passage flows. Manufactured from AISI 304 stainless steel with a corrosion-resistant aluminum core, its internal mechanism utilizes special investment casting technology for long-lasting, trouble-free operation. It operates bi-directionally and can seamlessly integrate with any access control system via a simple dry-contact. Ideal for public transportation terminals, universities, banks, and business centers, it also features automatic locking, LED status indicators, and an optional drop-arm mechanism for quick emergency evacuations.
Strong Mechanism.
Intense Usage.
Trouble-free Long Years.
Vandal-proof.
Reliable.
Spare Parts Support.
Indoor & Outdoor Conditions.
| Feature | Details |
| Control/Operation Voltage | 100-230 VAC 50/60 Hz |
| Power Consumption | 30 W |
| Operation Temperature | -20°C – +70°C (With Optional Heater – 30°C) |
| Passage Speed | 30 P/Min. |

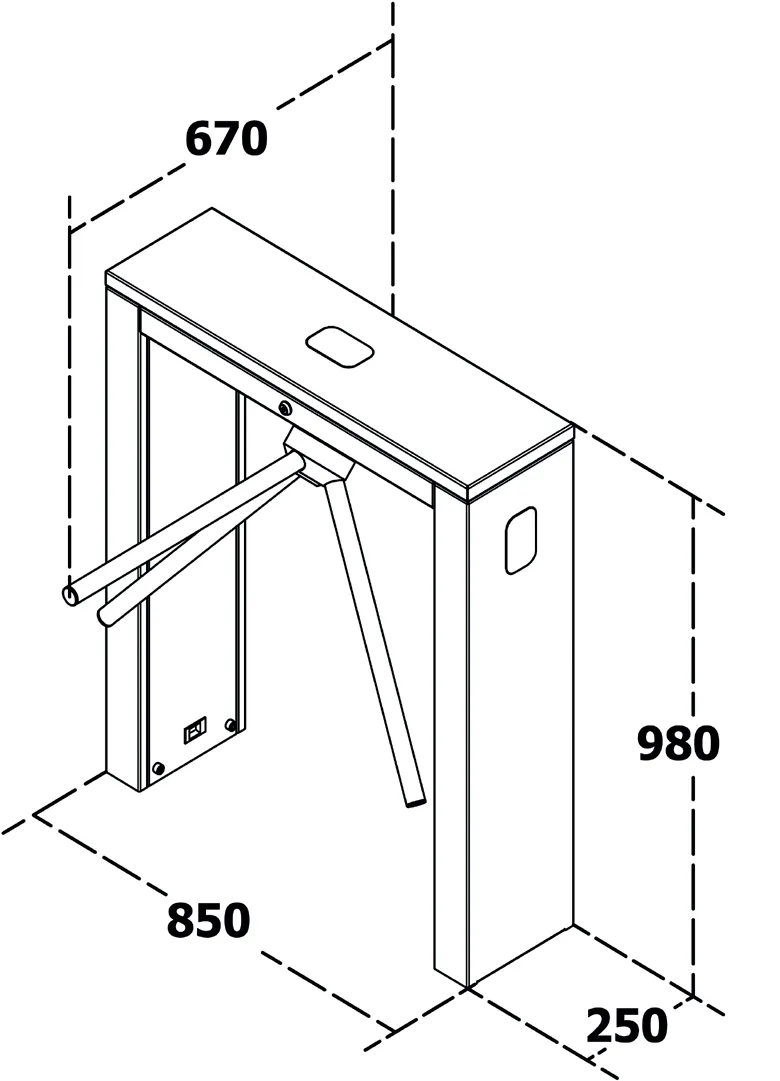

| Passage Range | Min. 42 cm / Max. 47 cm |
| Weight | 32 Kg |
| Usage Area | Indoor/Outdoor (If the cover is silicon) |
| Optional Accessories | Drop-arm, remote control, button unit, card reader, biometric reader, counter |
| Protection | IP 54 (Op. Ip 65) |
Integration: Operates bidirectionally and can be integrated with any kind of access control system like a card reader, biometric reader, remote control unit, or push button via a simple dry-contact.
Passage Operation: Once the access right is granted, the user should touch the arm slightly to make it rotate. After the tripods complete one turn, it is automatically locked. If the user does not use the passage right in 15 seconds, it will give a buzzer warning and lock itself.
Indicators: Status indicator LED lights are located on both sides in green arrow and red cross shapes to show allowed passage directions.
Emergency Safety: In case of a power cut, the turnstile is unlocked to allow free rotation of the arms in both sides. As an option, a drop-arm mechanism can be included; upon receiving a signal from the emergency system, the blocking arm will drop to provide a completely free passage lane for quick evacuation.
